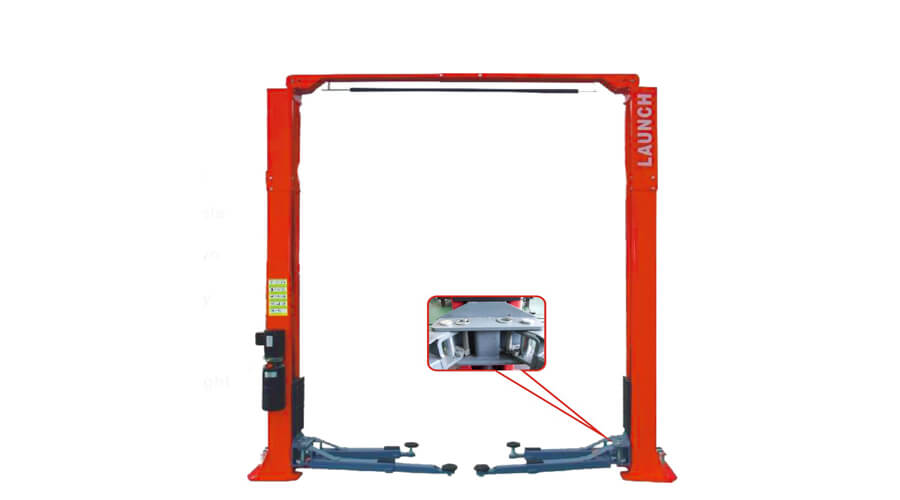

TLT235SC(Clear Floor)

Exclusive Price: Rs. 155000

Features

  • Bilateral manual safety unlocking system.
  • The cable and oil pipe are fully concealed; with decent and elegant appearance.
  • Double hydraulic cylinder and high strength chain drive makes stable and smooth lifting and lowering.
  • Wire rope equalization system forces synchronous movement of two carriages and effectively prevents vehicle from tilting.
  • 24 V low voltage control box (IP54 level) ensures operators safety
  • 24V cylinder travel limit switch effectively protects cylinder and extends its lifespan
  • Door rubber pad protects car door from being damaged in collision
  • More lifting pads with different height meets the requirements for light lorries and SUVs.
  • Passed 115% dynamic loading test and 150% static loading test
  • CE certificated
  • Symmetric and asymmetric installation types are optional. (For SC model)

  • Configuration Instructions

    BasicCE Standard
    Swing arm2 stage (800-1200)*4YesYes
    Unlocking systemBillateral manual pullYesYes
    Power unitDomestic (Underneath) 2.2KW 10LYesYes
    Control BoxElectric control boxYes
    Lifting padDouble screws lifting padYesYes
    Safety DeviceCylinder travel limit module, button box, Anti-explosion valve, guardrailYes
    ColorLaunch red, Laun ch grey, Volkswagen blue, Hyundai blue, GM blue (Buick blue)YesYes
    Warranty1 YearYesYes

    Technical Parameters

    Capacity(kg)3500
    Lifting height(mm)1850
    Initial height(mm)110
    Lifting time(s)<=50
    Lowering time(s)>=20,<=40
    Passing width for symmetric installation(mm)2436
    passing width for asymmetric installation(mm)2390-
    Overall width for symmetric installation(mm)3400
    Overall width for asymmetric installation(mm)3551-
    Overall height(mm)3840
    Motor power(kw)2.2
    Motor Voltage3 phase/380V or Single phase/220V
    Working noise(dB(A)<=75dB
    Working oil pressure(MPa)16
    Exclusive Price: Rs. 155000
