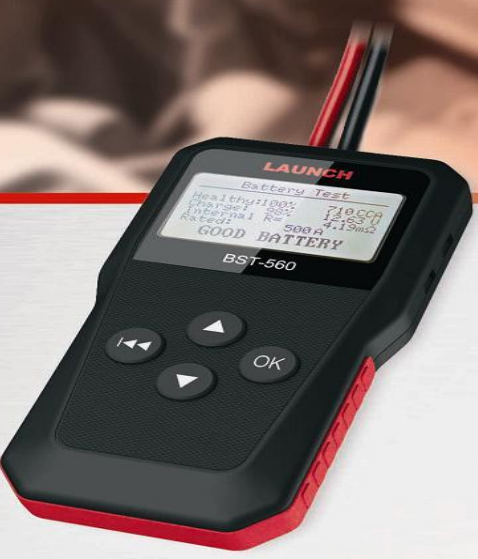

BST-560 Battery Tester

6 Kind of Test

Ripple Detection

Electric Current Test

Charging System Test

Battery Test

Starter Test

Voltage Test

Product Features

No necessary to remove the batery by detecting in the vehicle

The battery test results are quick and accurate (within 3 Sec.)

Bad-cell battery can be detected directly

The status of charging voltage can be detected

No heating, no discharge, no spark, no operating risks

The starting voltage of the vehicle can be detected

The USB port can export service records

Test battery with loss of electricity (able to test low to 8V)

Support Automatic temperature compensation function

Available to the batch inspection of battery by testing continuously and repeatedly

Support multiple languages menu

Test Range

CCA - 100 ~ 2000

DIN - 100 ~ 1400

EN - 100 ~ 2000

IEC - 100 ~ 2000

SAE - 100 ~ 2000

JIS - 26A17 ~ 245H52

CA - 100 ~ 2000

MCA - 100 ~ 2000

BCI - 100 ~ 2000

GB - 30Ah ~ 200Ah

*Applicable battery types : 6V, 12V and 24V batteries (Lead-acid battery, gel battery and AGM battery)

Technical Data

Display - 4-line Graphic Lcd Display With Backlight

Test Cable - 80 mm Standard Cable

Working Temperature - -20 ~ 55°C

Dimension - 150*76*25mm

Weight - 300g

Case Material - Abs Acid-proof Plastic, Industrial Case Design, Suitable for Repair workshops

Language

European Configuration A : English, German, Italian, French, Polish, Russian

European Configuration B : Netherlands, Sweden, Finland, Turkey, Denmark, Norway

American Configuration : English, Spanish, Portuguese, French

Asia Configuration A : English, Traditional Chinese, Simplified Chinese

Asia Configuration B : English, Japanese, Korean
