Exclusive Price: Rs. 190000

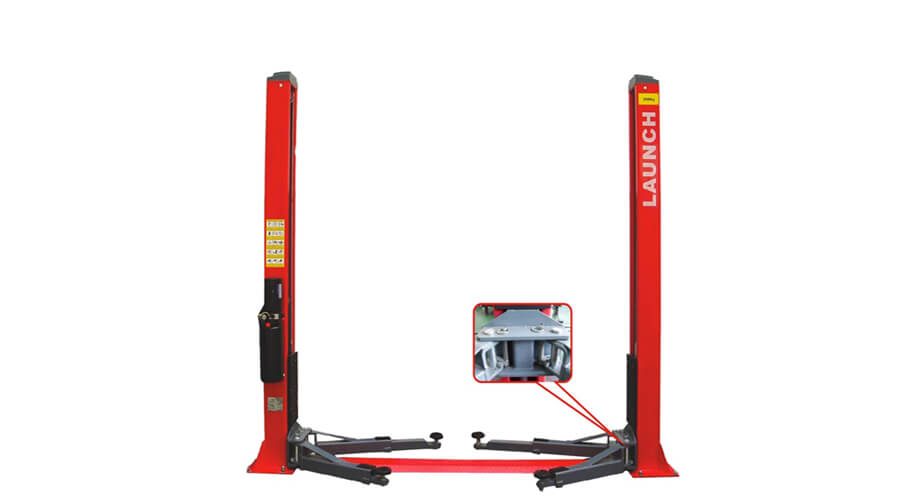

Features
Bilateral manual safety unlocking system.
The cable and oil pipe are fully concealed; with decent and elegant appearance.
Double hydraulic cylinder and high strength chain drive makes stable and smooth lifting and lowering.
Wire rope equalization system forces synchronous movement of two carriages and effectively prevents vehicle from tilting.
24 V low voltage control box (IP54 level) ensures operators safety
24V cylinder travel limit switch effectively protects cylinder and extends its lifespan
Door rubber pad protects car door from being damaged in collision
More lifting pads with different height meets the requirements for light lorries and SUVs.
Passed 115% dynamic loading test and 150% static loading test
CE certificated
Symmetric and asymmetric installation types are optional. (For SC model)
Configuration Instructions
| Basic | CE Standard | ||
| Swing arm | 2 stage (800-1200)*4 | Yes | Yes |
| Unlocking system | Billateral manual pull | Yes | Yes |
| Power unit | Domestic (Underneath) 2.2KW 10L | Yes | Yes |
| Control Box | Electric control box | Yes | |
| Lifting pad | Double screws lifting pad | Yes | Yes |
| Safety Device | Cylinder travel limit module, button box, Anti-explosion valve, guardrail | Yes | |
| Color | Launch red, Laun ch grey, Volkswagen blue, Hyundai blue, GM blue (Buick blue) | Yes | Yes |
| Warranty | 1 Year | Yes | Yes |
Technical Parameters
| Capacity(kg) | 3500 |
| Lifting height(mm) | 1850 |
| Initial height(mm) | 110 |
| Lifting time(s) | <=50 |
| Lowering time(s) | >=20,<=40 |
| Passing width for symmetric installation(mm) | 2486 |
| passing width for asymmetric installation(mm) | - |
| Overall width for symmetric installation(mm) | 3370 |
| Overall width for asymmetric installation(mm) | - |
| Overall height(mm) | 2486 |
| Motor power(kw) | 2.2 |
| Motor Voltage | 3 phase/380V or Single phase/220V |
| Working noise(dB(A) | <=75dB |
| Working oil pressure(MPa) | 16 |
